Thing Glass
Thin glass
Also known as: Sheet Glass
Functions: Glass with better optical and flatness
Application: Instrument Window, Coating Substrate
▽Glass0.55 ▽Glass0.7 ▽EXG0.7
▽Information and Notes
ITEM NO:0.21-0.2 (CORNING 0211)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.2mm
Square: 3x3 - 330x360mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

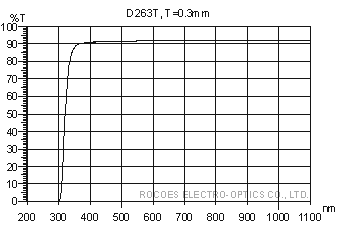

ITEM NO:D263T 0.3 (SCHOTT D263T)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.21, 0.3mm
Square: 3x3 - 330x360mm
Round: Dia3 - 300mm
Resistant Temperature
350℃
ITEM NO:Glass0.4
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.4mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

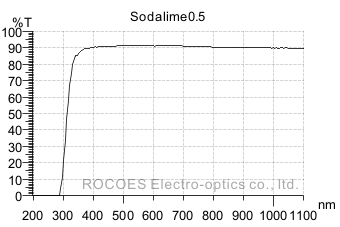

ITEM NO:Glass0.5
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.5mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

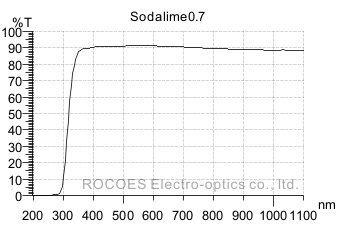

ITEM NO:Glass0.7
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
Thickness: 0.7mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
ITEM NO:EXG0.7 (CORNING Eagle XG)
Spectral Characteristics
Tave>92% @ 380-700nm
Physical Characteristics
EAGLE XG: 0.7mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
450℃
Manufacturer:CORNING
Information and Notes
1. Optical Glass will have a slightly higher penetration rate than normal glass, and it will be controlled by strict standards in terms of surface quality, impurities or bubbles.
2. Special shapes or thicknesses can be cut or machined according to customer requirements.
3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.
4. Need higher penetration? Please refer to anti-reflection processing.
5. Need to increase the impact resistance? Please refer to Tempered glass.
6. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
7. 0211, EAGLE XG is a registered trademark of Corning Incorporated.
8. The registered trademark of D263T is owned by SCHOTT AG.
