Optical Filters
>

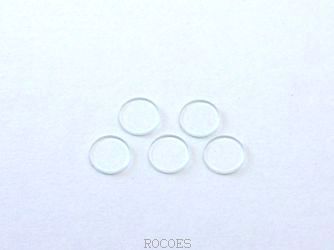

Anti-Reflecion Filters
Anti Reflecion Filters
Also called AR coating filters, AR films.
Functions:
Reduce visible light reflection.
High visible light transmittion.
Applications: Optical Equipments, Windows, Laser equipments.
▽AR-W ▽ARIR ▽ARIR2
▽ARIR3 ▽Information and Notes

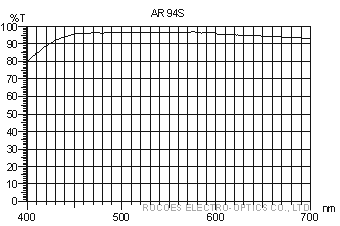

ITEM NO: AR94S (Single side AR Coating)
Spectral Characteristics
Tave>94% @ 420-680nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1mm
Square: 3x3 - 220x20mm
Round: Dia3 - 210mm
Resistant Temperature
Glass: 150℃

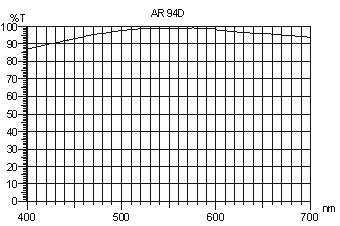

ITEM NO: AR94D (Dual side AR Coating)
Spectral Characteristics
Tave>94% @ 420-680nm
Physical Characteristics
Glass: 1.1, 2, 3mm
Tempered glass: 2, 3, 4, 5mm
Square: 8x8 - 350x406mm
Round: Dia8 - 340mm
Resistant Temperature
Glass: 150℃
Tempered Glass: 250℃

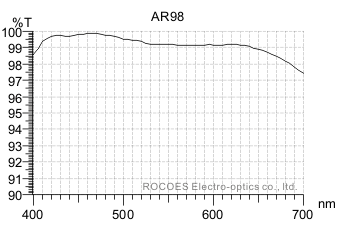

ITEM NO: AR98 (Dual side Mutil-Layers AR Coating)
Spectral Characteristics
Tave>94% @ 420-680nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1, 2, 3mm
Tempered glass: 2, 3, 4, 5mm
Square: 8x8 - 3550x406mm
Round: Dia8 - 340mm
Resistant Temperature
Glass: 150℃
Tempered Glass: 250℃

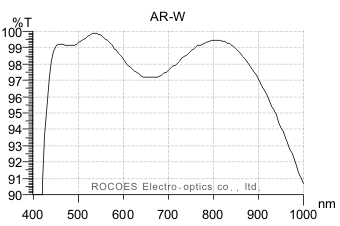

ITEM NO:AR-W (wide AR coating)
Spectral Characteristics
Tave>94% @ 420-680nm
Physical Characteristics
Glass: 0.4, 0.55, 0.7, 1.1, 2, 3mm
Tempered glass: 2, 3, 4, 5mm
*The spectral curve varies with the thickness of glass..
Square: 8x8 - 3550x406mm
Round: Dia8 - 340mm
Resistant Temperature
Glass: 150℃
Tempered Glass: 250℃

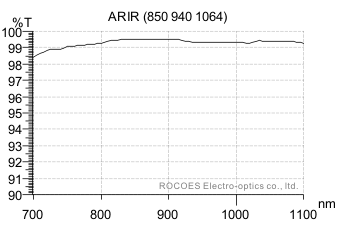

ITEM NO:ARIR (for NIR)
Spectral Characteristics
Tave>98% @ 800-1064nm
Physical Characteristics
B270: 1.1, 2.0, 3.0mm
D263t: 0.3, 0.55, 0.7mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
Resistant Temperature
B270: 150℃
D263t: 350℃

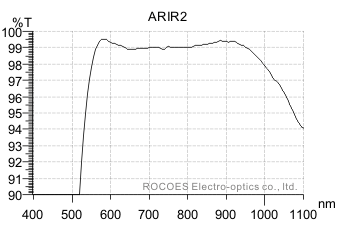

ITEM NO:ARIR2 (for red and infrared)
Spectral Characteristics
Tave>98% @ 600-1000nm
Physical Characteristics
B270: 1.1, 2.0, 3.0mm
D263t: 0.3, 0.55, 0.7mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
Resistant Temperature
B270: 150℃
D263t: 350℃

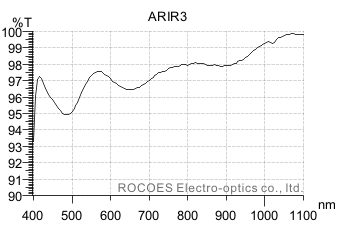

ITEM NO:ARIR3 (for VIS-NIR)
Spectral Characteristics
Tave>96% @ 420-900nm
Tave>98% @ 900-100nm
Physical Characteristics
B270: 1.1, 2.0, 3.0mm
D263t: 0.3, 0.55, 0.7mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
Resistant Temperature
B270: 150℃
D263t: 350℃
Information and Notes
1. Anti Reflecion Filters with 2~16 thin film layers which vacuum-deposited on substrate.
2. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation)。
3. The transmittance curves are measurements at 0°of incidence angle.
4. The transmittance curves are based on actual measurements and may be different with manufacturing lots.
5. Browse below for more information and products,
*Click here to see spectrum of variety GLASS without coating.
