Thick Glass

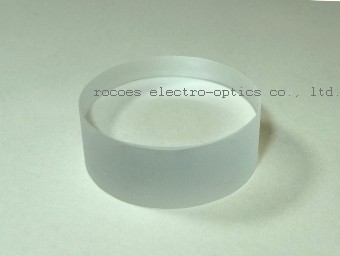

Thick glass
Also known as Thick plate glass.
Functions: Thicker than normal glass but still have good penetration
Application: Instrument Window, Detecting Carrier Disk
▽Borosilicate5 ▽Borosilicate8 ▽Borosilicate12 ▽Borosilicate20
▽Infomation and Notes
ITEM NO:Glass
Spectral Characteristics
Tave>85% @ 400-680nm
Physical Characteristics
Thickness: 5~12mm
Square: 100x100 - 800x800mm
Round: Dia100 - 800mm
Resistant Temperature
150℃

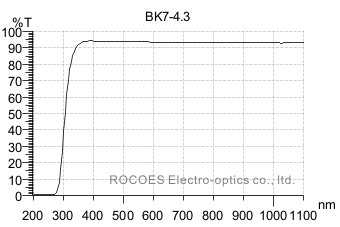

ITEM NO:BK7
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 5~12mm
Square: 20x20 - 600x600mm
Round: Dia200 - 600mm
Resistant Temperature
150℃

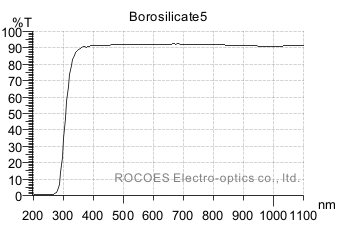

ITEM NO:Borosilicate5
Spectral Characteristics
Tave>91% @ 380-1100nm
Physical Characteristics
Thickness: 5 +/-0.3mm
Square: 20x20 - 600x600mm
Round: Dia200 - 600mm
Resistant Temperature
450℃
ITEM NO:Borosilicate8
Spectral Characteristics
Tave>90% @ 380-1100nm
Physical Characteristics
Thickness: 8 +/-0.3mm
Square: 20x20 - 600x600mm
Round: Dia200 - 600mm
Resistant Temperature
450℃

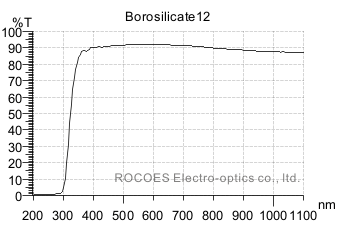

ITEM NO:Borosilicate12
Spectral Characteristics
Tave>90% @ 380-1100nm
Physical Characteristics
Thickness: 12 +/-0.3mm
Square: 20x20 - 600x600mm
Round: Dia200 - 600mm
Resistant Temperature
450℃

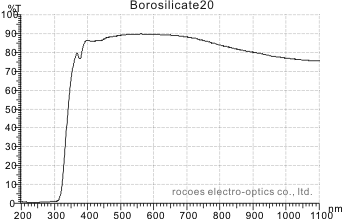

ITEM NO:Borosilicate20
Spectral Characteristics
Tave>88% @ 380-1100nm
Physical Characteristics
Thickness: 20 +/-0.3mm
Square: 20x20 - 600x600mm
Round: Dia200 - 600mm
Resistant Temperature
450℃
Information and Notes
1. Thick glass will have a lower penetration rate than normal Glass, and there will be a little more surface quality, impurities or bubbles.
2. Special shapes or thicknesses can be cut or machined according to customer requirements.
3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.
4. Need higher penetration? Please refer to anti-reflection processing.
5. Need to increase the impact resistance? Please refer to Tempered glass.
6. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
