Low-iron Glass

Low-iron Glass

Also know as: Ultra-white glass, super white glass

Functions: slightly higher than the blue plate penetration rate, especially in the infrared band, which is more competitive than BK7

Application: Instrument Window, Instrument Protection Sheet

▽UGLASS5 ▽UGLASS8 ▽Information and Notes 5mm,low-iron glass,rocoes

ITEM NO:UGLASS5

Spectral Characteristics

Tave>88% @ 400-700nm

Physical Characteristics

Thickness: 5mm

Square: 100x100 - 990x990mm

Round: Dia100- 990mm

Resistant Temperature

150℃

ITEM NO:UGLASS8

Spectral Characteristics

Tave>88% @ 400-700nm

Physical Characteristics

Thickness: 8mm

Square: 100x100 - 990x990mm

Round: Dia100- 990mm

Resistant Temperature

150℃

Information and Notes

1. Low-iron glass slightly higher than the soda-lime glass penetration rate, especially in the infrared band, which is more competitive than BK7

2. Special shapes or thicknesses can be cut or machined according to customer requirements.

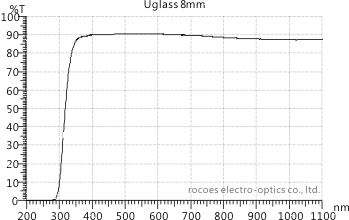

3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.

4. Need higher penetration? Please refer to anti-reflection processing.

5. Need to increase the impact resistance? Please refer to Tempered glass.

6. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
