    Glass for Monitor

    glass,rocoes

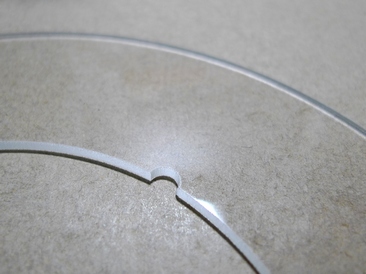

    Coating monitor / proof / verification film



    Also known as: Coating film, film verification film



    Functions: Synchronous monitoring and comparison monitoring film for coating



    Application: Coating machine monitoring equipment, coating machine equipment

    ▽Dia30  ▽Dia95  ▽Dia140
    ▽D142  ▽Informations and Notes          Glass, coating glass

    ITEM NO:D30 (Dia29.7~30mm B270)



    Spectral Characteristics



    Tave>92% @ 380-680nm



    Physical Characteristics

    Thickness: 1.1mm



    Round: Dia29.7 (+/-0.3mm)



    Coating machine cavity temperature:



    20~400°C

                coated glass

    ITEM NO:D95 (Dia94.7~95mm B270)



    Spectral Characteristics



    Tave>92% @ 380-680nm



    Physical Characteristics

    Thickness: 1.1mm



    Round: Dia95 +/-0.3mm



    Coating machine cavity temperature:



    20~400°C

            coated glass

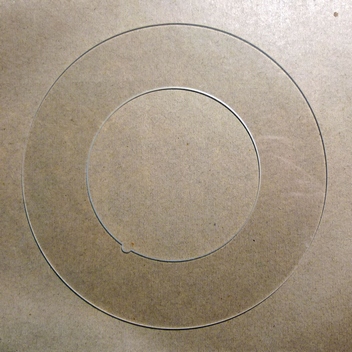

    ITEM NO:D140



    Spectral Characteristics



    Tave>92% @ 380-680nm



    Physical Characteristics

    Thickness: 1.35mm



    Round: Dia95 +/-0.3mm



    Coating machine cavity temperature:



    20~400°C

            coated glass

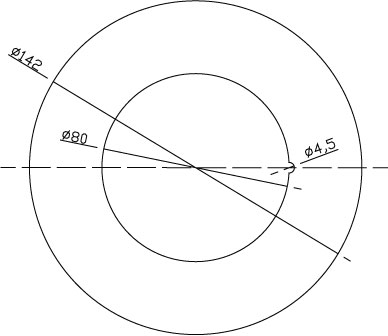

    ITEM NO:D142



    Spectral Characteristics



    Tave>92% @ 380-680nm



    Physical Characteristics

    Thickness: 1.65 +/-0.1mm



    Round: Dia142 +/-0.3mm



    Coating machine cavity temperature:



    20~400°C


    Information and Notes

    1. The monitor film is suitable for coating machine monitoring or proof of use.

    2. Special shapes or thicknesses can be cut or machined according to customer requirements.

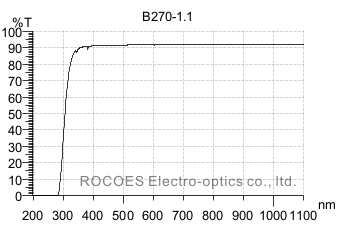

    3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.

    4. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.

    5. The glass used is SCHOTT B270, which is a SCHOTT AG.
