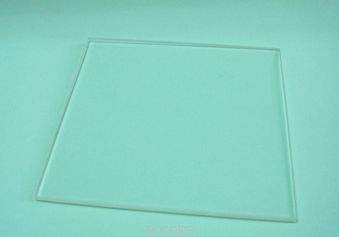

    Also known as: Fused quartz.


    Functions: can withstand high temperatures above 1100 °C for a long time, acid and alkali resistance, up to 92% penetration


    Application: Various instrument windows, various appliance windows

      corning eagle xg 0.7mm

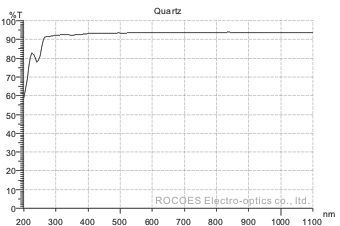

    Spectral Characteristics

    Tave>92% @ 260-1100nm

    Physical Characteristics

    Thickness: 1.0~8.0mm

    Square: 8x8 - 300x300mm

    Round: Dia8 - 300mm

    Resistant Temperature


    Information and Notes

    1. Quartz penetrates higher than the average glass in the UV range and can withstand higher operating temperatures than heat resistant glass.

    2. Special shapes or thicknesses can be cut or machined according to customer requirements.

    3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.

    4. Need higher transmittance? Please refer to anti-reflection processing.

    5. The website specifications are for reference only, and shipments are subjected to the specifications confirmed by both parties.
