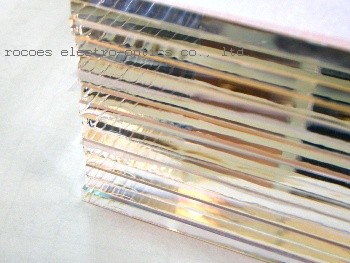

Borosilicate
Borosilicate
Also known as: low expansion glass, high temperature resistant glass
Functions: can withstand temperatures above 450 degrees Celsius for a long time, up to 92% penetration
Application: Various instrument windows, high temperature/high watt lighting protection film, projector.
▽Borosilicate5 ▽Borosilicate8 ▽Borosilicate12
▽Borosilicate20 ▽Information and Notes
ITEM NO:EXG0.7 (CORNING Eagle XG)
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
EAGLE XG: 0.7mm
Square: 8x8 - 550x650mm
Round: Dia8 - 300mm
Resistant Temperature
450℃
Manufacturer: CORNING

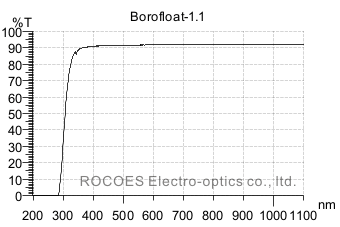

ITEM NO:Borofloat (SCHOTT Borofloat33)
Spectral Characteristics
Tave>92% @ 360-1100nm
Tave<1% @ 200-280nm
Physical Characteristics
Thickness: 1.1, 2.0, 2.75, 3.3, 5mm
Square: 8x8 - 300x300mm
Round: Dia8 - 300mm
Resistant Temperature
450℃
Manufacturer: SCHOTT AG
ITEM NO:E2000 (CORNING Eagle 2000)
Spectral Characteristics
Tave>92% @ 360-1100nm
Tave<1% @ 200-260nm
Physical Characteristics
Thickness: 0.7, 1.1mm
Square: 8x8 - 500x500mm
Round: Dia8 - 500mm
Resistant Temperature
450℃
Manufacturer: CORNING
ITEM NO:Borosilicate5
Spectral Characteristics
Tave>91% @ 380-1100nm
Physical Characteristics
Thickness: 5.0 +/-0.3mm
Square: 50x50 - 600x600mm
Round: Dia50 - 500mm
Resistant Temperature
450℃

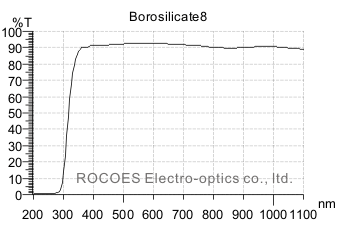

ITEM NO:Borosilicate8
Spectral Characteristics
Tave>90% @ 380-1100nm
Physical Characteristics
Thickness: 8.0 +/-0.3mm
Square: 100x100 - 600x600mm
Round: Dia100 - 500mm
Resistant Temperature
450℃
ITEM NO:Borosilicate12
Spectral Characteristics
Tave>90% @ 380-1100nm
Physical Characteristics
Thickness: 8.0 +/-0.3mm
Square: 100x100 - 600x600mm
Round: Dia100 - 500mm
Resistant Temperature
450℃
ITEM NO:Borosilicate20
Spectral Characteristics
Tave>88% @ 420-700nm
Physical Characteristics
Thickness: 20.0 +/-0.5mm
Square: 100x100 - 600x600mm
Round: Dia100 - 500mm
Resistant Temperature
450℃
Information and Notes
1. Heat-resistant glass will have a lower coefficient of expansion than ordinary glass and can withstand high temperatures without breaking.
2. Special shapes or thicknesses can be cut or machined according to customer requirements. Please refer to Glass process for processing.
3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.
4. Need higher penetration? Please refer to Anti-reflection processing.
5. Need to increase the impact resistance? Heat-resistant glass can be chemically strengthened, please refer to Tempered glass.
6. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
7. BOROFLOAT33 is a registered trademark of SCHOTT AG.
8. EAGLE XG, EAGLE 2000 registered trademark is owned by Corning Incorporated.
