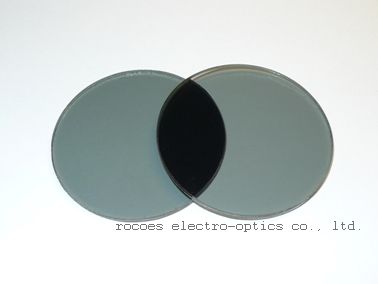

    Polarizer

    polarizer,rocoes

    Polarizer

    Polarizing filters

    The main principle of the polarizer is that when there is an electric field and no electric field, the light source is in a phase difference and appears bright and dark. The polarizer is made of a glass material and a polarizing film, and only allows light in a certain direction to pass through, and two overlapping rotations can control the transmittance from 0 to 38%.。

    Applications:For photography,AOI, Optical equipments.

     polarizer,rocoes

    ITEM NO: PL

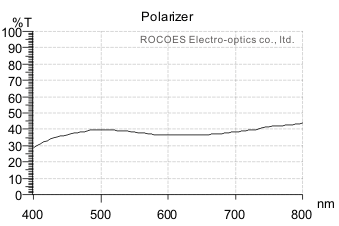

    Spectral Characteristics

    Tave=38 +/-2% @ 400-800nm

    Physical Characteristics

    2.5mm

    Round: Dia48, Dia50mm

    Suggested use environment:



    Temperature: -20~60°C



    Humidity: 10~45%RH
