    R.O.Y. glass/Long Pass Filters

    long pass filter,rocoes

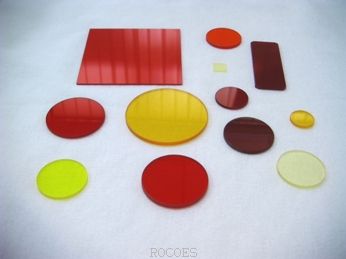

    R.O.Y. glass/Long Pass Filters

    Red glass filters, Orange glass filters, Yellow glass filters.

    Functions: Long wavelength pass while absorb short wavelength.

    Applications: Optical Equipments, Automatic Optical Inspection Equipment(AOI)

    ▽R650H   ▽R630H   ▽R600H
    ▽O580H   ▽O565H   ▽Y535H
    ▽Y490H   ▽Y450H   ▽Information and Notes     R650H, long pass,rocoes

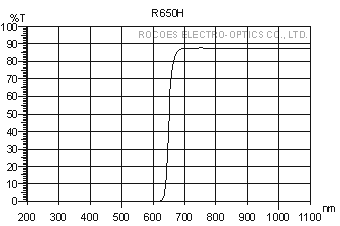

    ITEM NO: R650H

    Spectral Characteristics

    T50%=650 +/-15nm

    Tave>80% @ 700-1100nm

    Tave<5% @ 200-600nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       R650H, long pass,rocoes

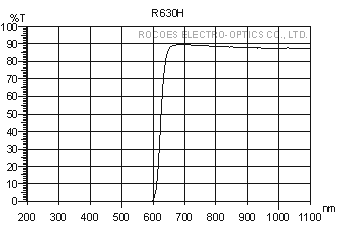

    ITEM NO: R630H

    Spectral Characteristics

    T50%=630 +/-15nm

    Tave>80% @ 680-1100nm

    Tave<5% @ 200-580nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       R650H, long pass,rocoes

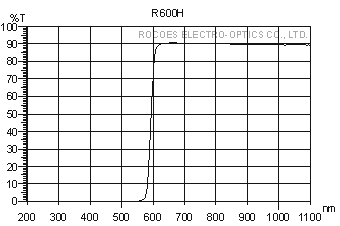

    ITEM NO: R600H

    Spectral Characteristics

    T50%=600 +/-15nm

    Tave>80% @ 650-1100nm

    Tave<5% @ 200-540nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       O580H,long pass,rocoes

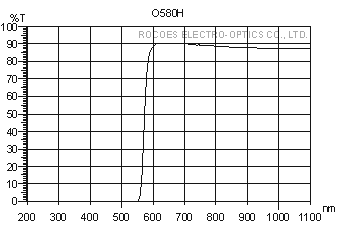

    ITEM NO: O580H

    Spectral Characteristics

    T50%=580 +/-15nm

    Tave>80% @ 630-1100nm

    Tave<5% @ 200-530nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       y535H, long pass,rocoes

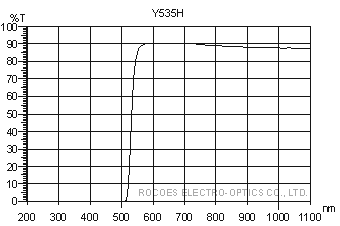

    ITEM NO: Y535H

    Spectral Characteristics

    T50%=535 +/-15nm

    Tave>80% @ 590-1100nm

    Tave<5% @ 200-480nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       y490H, long pass,rocoes

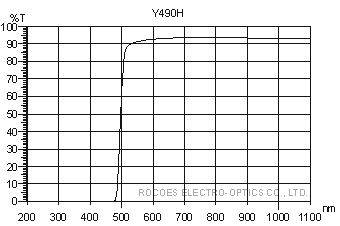

    ITEM NO: Y490H

    Spectral Characteristics

    T50%=490 +/-15nm

    Tave>80% @ 540-1100nm

    Tave<5% @ 200-440nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

       y450H, long pass,rocoes

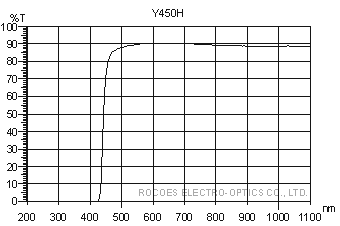

    ITEM NO: Y450H

    Spectral Characteristics

    T50%=450 +/-15nm

    Tave>80% @ 500-1100nm

    Tave<5% @ 200-400nm

     *The spectral curve varies with the thickness of glass.

    Physical Characteristics

    Glass filters: 1~4mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters: 100℃

    Information and Notes

    1. Red, orange and yellow glass absorbing short wavelength range and transmitting red, orange and yellow wavelength.

    2. The transmittance curves are measurements at 0°of incidence angle.

    3. Glass Filters are also called "colored glass filters" or "color filters" generically.

    4. The spectral curve varies with the thickness of glass.
