IRpass filters
IRpass filters
Cold Mirrors, IR Filters, Infrared filters/p>
Type1: Multi-layers which vacuum-deposited on substrate.
Type2: Glass filters absorb UV and visible while infrared pass/p>
Applications: Infrared sensor, Night vision monitor, Automatic Optical Inspection Equipment(AOI).
▽IR970C ▽IR720H ▽IR760H
▽IR850H ▽IR1020H ▽Information and Notes

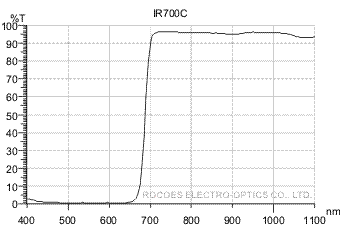

ITEM NO: IR700C
Spectral Characteristics
T50%=700 +/-15nm
Tave>80% @ 750-1000nm
Tave<3% @ 430-650nm
Physical Characteristics
Glass: 0.7, 1.1mm
Borosilicate: 1.1, 2.0, 3.0mm
Square: 3x3 - 310x320mm
Round: Dia3 - 300mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

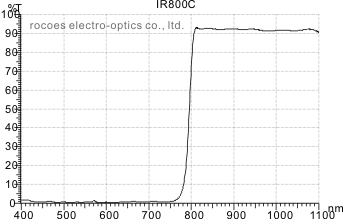

ITEM NO: IR800C
Spectral Characteristics
T50%=800 +/-15nm
Tave>88% @ 850-1100nm
Tave<3% @ 430-750nm
Physical Characteristics
Glass: 0.7, 1.1mm
Borosilicate: 1.1, 2.0, 3.0mm
Square: 3x3 - 310x320mm
Round: Dia3 - 300mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

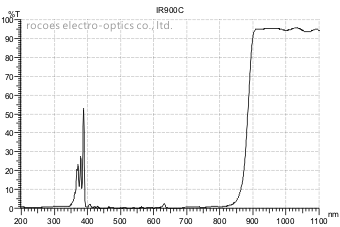

ITEM NO: IR900C
Spectral Characteristics
T50%=900 +/-15nm
Tave>88% @ 930-1100nm
Tave<3% @ 410-830nm
Physical Characteristics
Glass: 0.7, 1.1mm
Borosilicate: 1.1, 2.0, 3.0mm
Square: 3x3 - 310x320mm
Round: Dia3 - 300mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃
ITEM NO: IR970C
Spectral Characteristics
T50%=970 +/-15nm
Tave>88% @ 1000-1100nm
Tave<3% @ 750-930nm
Physical Characteristics
Glass: 0.7, 1.1mm
Borosilicate: 1.1, 2.0, 3.0mm
Square: 3x3 - 310x320mm
Round: Dia3 - 300mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

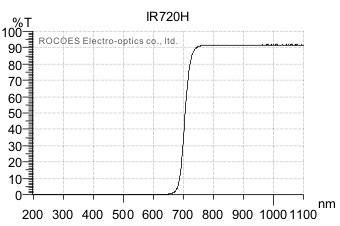

ITEM NO: IR720H
Spectral Characteristics
T50%=720 +/-15nm
Tave>80% @ 770-2000nm
Tave<2% @ 200-660nm
Physical Characteristics
Glass filters: 1~4mm
*The spectral curve varies with the thickness of glass.
Square: 5x5 - 150x150mm
Round: Dia5 - 150mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

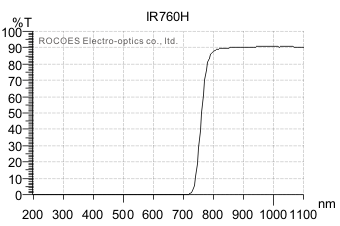

ITEM NO: IR760H
Spectral Characteristics
Tave>80% @ 810-2000nm
Tave<2% @ 200-700nm
Physical Characteristics
Glass filters: 1~4mm
*The spectral curve varies with the thickness of glass.
Square: 5x5 - 150x150mm
Round: Dia5 - 150mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃
ITEM NO: IR780H
Spectral Characteristics
Tave>80% @ 830-2000nm
Tave<2% @ 200-720nm
Physical Characteristics
Glass filters: 1~4mm
*The spectral curve varies with the thickness of glass.
Square: 5x5 - 150x150mm
Round: Dia5 - 150mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

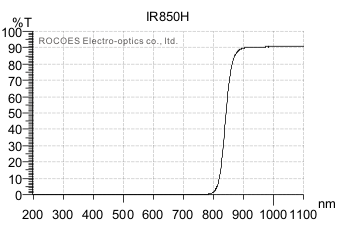

ITEM NO: IR850H
Spectral Characteristics
Tave>80% @ 900-2000nm
Tave<3% @ 200-790nm
Physical Characteristics
Glass filters: 1~4mm
*The spectral curve varies with the thickness of glass.
Square: 5x5 - 150x150mm
Round: Dia5 - 150mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃

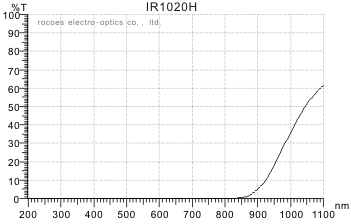

ITEM NO: IR1020H
Spectral Characteristics
Tave>50% @ 1000-2000nm
Tave<2% @ 200-800nm
Physical Characteristics
Glass filters: 1~4mm
*The spectral curve varies with the thickness of glass.
Square: 5x5 - 150x150mm
Round: Dia5 - 150mm
Resistant Temperature
Glass: 150℃
Borosilicate: 450℃
Information and Notes
1. IR700C,IR900C,IR970C(Cold Mirror) with 40~52 thin film layers which vacuum-deposited on substrate.
2. Option: Side2 with multi-layer Anti-reflection coating to reduce reflection from 4% to 0.5% for less reflect of image or light.
3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation) .
4. The transmittance curves are measurements at 45°of incidence angle.
5. The transmittance curves are based on actual measurements and may be different with manufacturing lots.

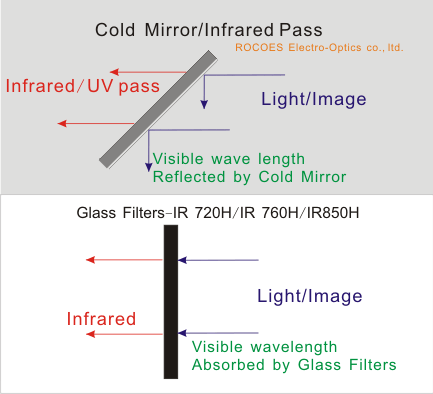

6. IR720H,IR760H,IR780H,IR850H(Glass Filters) absorbing the light in orange and red wavelength range and transmitting light in the blue wavelength region.
7. The transmittance curves are based on actual measurements and may be different with manufacturing lots.
8. Glass Filters are also called "colored glass filters" or "color filters" generically.
9. Browse below for more information or other products,
*Click here to see other Glass Filters - Red, Orange, Yellow Glass.*Click here to see other Glass Filters - UV (pass) Filters.
