  • HOME > Optical Filters >

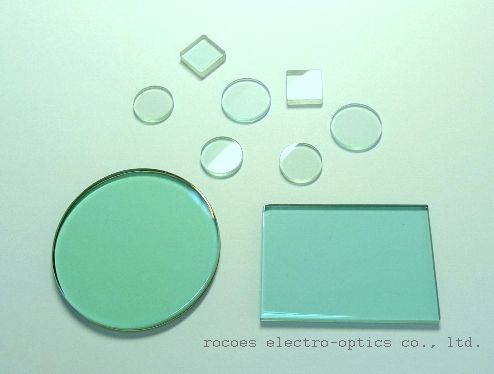

    IR absorb filters

    ir absorb filter,rocoes

    IR absorb filters/吸熱玻璃

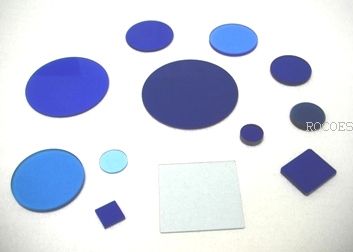

    又名: IR absorb filters, Blue glass

    Functions: IR absorb filters absorb infrared light and penetrate high in the visible light range. It is suitable for lamp insulation, ccd or cmos lenses.

    Applications: AOI, Optical equipments, Image equipments.

    ABIR         ▽ABIR2         ▽IRC635H
    IRC620H   ▽IRC610H     ▽IRC600H
    Information and Notes
    ir absorb,rocoes

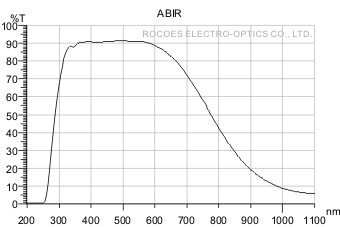

    ITEM NO: ABIR

    Spectral Characteristics

    Tave>80% @ 400-580nm

    Tave<5% @ 900-2500nm

    Physical Characteristics

    Glass filters: 3mm

    Borosilicate: 1.1mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters:100℃

      ir absorb,rocoes

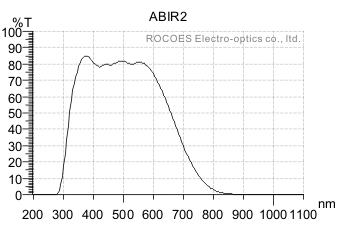

    ITEM NO: ABIR2

    Spectral Characteristics

    Tave>70% @ 400-570nm

    Tave<5% @ 850-2500nm

    Physical Characteristics

    Glass filters: 3mm

    Borosilicate: 1.1mm

    Square: 8x8 - 150x150mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass filters:100℃

      irc635h

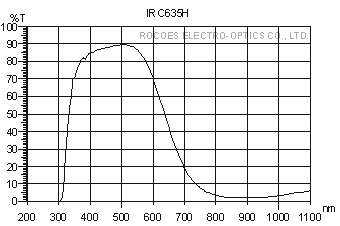

    ITEM NO: IRC635H

    Spectral Characteristics

    T50%=635 +/-10nm

    Tave>80% @ 400-550nm

    Tave<5% @ 800-1000nm

    Physical Characteristics

    Glass filters: 0.7mm

    Square: 8x8 - 50x50mm

    Round: Dia8 - 50mm

    Resistant Temperature

    Glass filters:100℃

      irc620h,

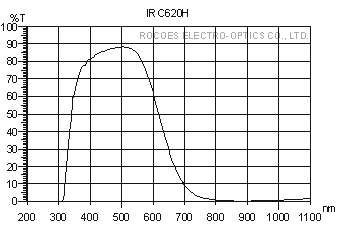

    ITEM NO: IRC620H

    Spectral Characteristics

    T50%=620 +/-10nm

    Tave>80% @ 400-530nm

    Tave<5% @ 800-1000nm

    Physical Characteristics

    Glass filters: 1.0mm

    Square: 8x8 - 50x50mm

    Round: Dia8 - 50mm

    Resistant Temperature

    Glass filters:100℃

      irc610h,,

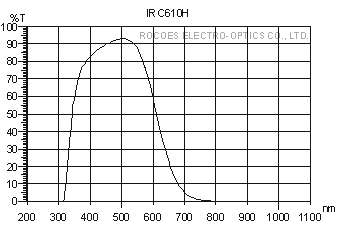

    ITEM NO: IRC610H

    Spectral Characteristics

    T50%=610 +/-10nm

    Tave>80% @ 400-550nm

    Tave<5% @ 800-1000nm

    Physical Characteristics

    Glass filters: 1.5mm<

    Square: 8x8 - 50x50mm

    Round: Dia8 - 50mm

    Resistant Temperature

    Glass filters:100℃


    Information and Notes

    1. Glass filters is made of glass raw materials and other formulas and is made into glass bricks, and then processed into glass sheets by sawing/grinding/polishing.

    2. Glass filters can be used with multilayer dielectric films to enhance the wavelength of the filter, improve penetration or reduce surface reflection.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    6. Browse below for more information and products,

       *Dichtoic filters.
       *Long pass filters
       *Blue glass
       *Glass filters
