RGB/CMY mix filters
RGB/CMY mix filters

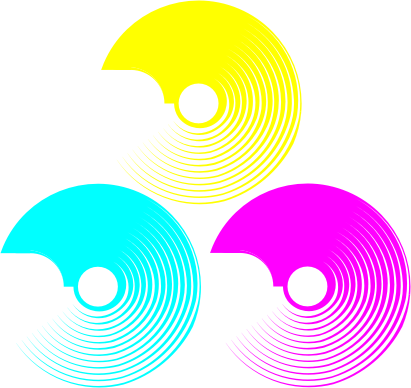

Functions: Using RGB or CMY light mixing principle, widely used in stage effects, building projection, commercial space lighting, moving lights, scanning lights, effect lights, wall washers, etc., can withstand high temperature, no fading, can Let colorless lamps project a variety of colors.
Applications: Lighting, LED lighting, Entertainment Lighting.

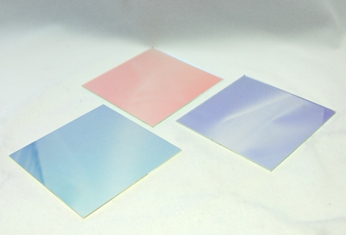

ITEM NO: RGB
Spectral Characteristics
Red
Green
Blue
Physical Characteristics
Glass: 1.1mm
Temper glass: 2.0, 3.0mm
Borosilicate:1.1mm
Square: 8x8 - 310x320mm
Round: Dia8 - 300mm
Resistant Temperature
Glass:150℃
Tempered glass:250℃
Borosilicate:450℃

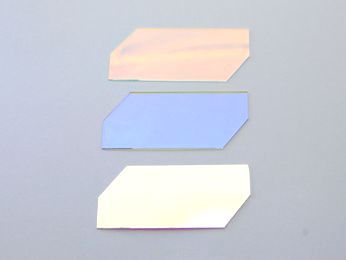

ITEM NO: UVCUT400
Spectral Characteristics
Cyan
Magenta
Yellow
Physical Characteristics
Glass: 1.1mm
Tempered glass: 2.0, 3.0mm
Borosilicate:1.1mm
Square: 8x8 - 310x320mm
Round: Dia8 - 300mm
Resistant Temperature
Glass:150℃
Tempered glass:250℃
Borosilicate:450℃
Information and Notes
1. R/G/B, C/M/Y filters are vacuum-deposited with a multilayer dielectric film. The number of coating layers is about 24~48 layers.
2. Other colors can be designed and manufactured according to customer's requirements.
3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).
4. The transmittance curves are measurements at 0°of incidence angle. The penetration color will vary slightly depending on the angle of incidence.
5. Tempered glass has minimum size and shape restrictions. Please refer to Introduction to Tempered glass for other details.
6. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.
7. Round size "Dia" is an abbreviation for diameter, which represents the diameter of a circle.
8. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
9. Browse below for more information and products,
