    Dichroic filters

    Dichroic filters, rocoes

    Dichroic filters / Dichroic Filters

    Also called Color filters

    Dichroic filters is made of vacuum-deposit multilayer film, which has high penetration, bright color, high temperature resistance and no fading. It can reflect various colors and be used in stage lights and effect lights.

    Applications: Lighting, Stage Lighting, Entertainment Lighting, AOI, Optical equipments, Image equipments.



    Red[▽R660R640R615]
    Orange[▽O580]
    Yellow[▽Y550Y530Y520]
    Green[▽G485/525G505/545G505/560]
    Cyan[▽B560B540]
    Blue[▽B505B480B440]
    Pink[▽P490/585]
    Magenta[▽M445/620M460/635]
    Information and Notes

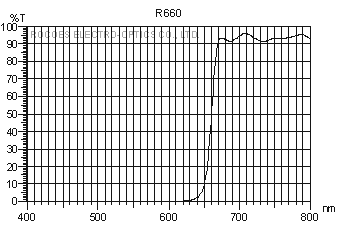

    R660

    ITEM NO: R660 (Dark Red)

    Spectral Characteristics

    T50%=660 +/-5nm

    Tave>88% @ 690-700nm

    Tave<3% @ 400-620nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

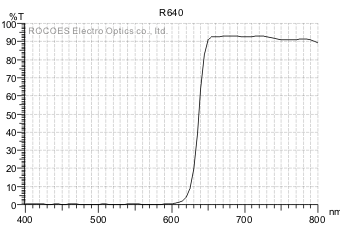

    R640,red

    ITEM NO: R640 (Red)

    Spectral Characteristics

    T50%=640 +/-5nm

    Tave>88% @ 670-700nm

    Tave<3% @ 400-600nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

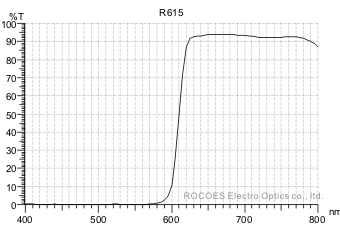

    R615,light red

    ITEM NO: R615 (Light Red)

    Spectral Characteristics

    T50%=615 +/-5nm

    Tave>88% @ 650-700nm

    Tave<3% @ 400-560nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

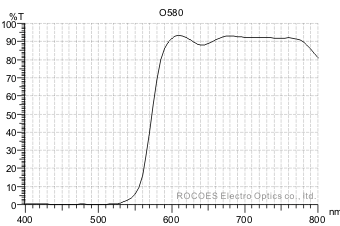

    O580,orange

    ITEM NO: O580 (Orange)

    Spectral Characteristics

    T50%=580 +/-5nm

    Tave>88% @ 620-700nm

    Tave<3% @ 400-520nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

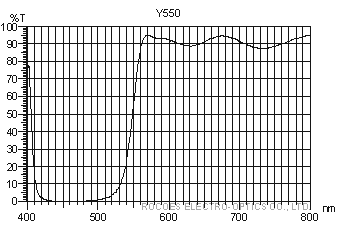

    Y550,Amber

    ITEM NO: Y550 (Amber)

    Spectral Characteristics

    T50%=550 +/-5nm

    Tave>88% @ 590-700nm

    Tave<3% @ 400-510nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

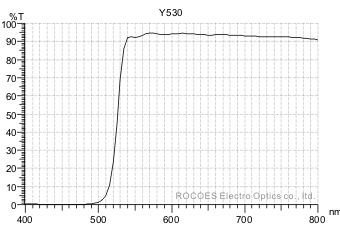

    y530,yellow

    ITEM NO: Y530 (Yellow)

    Spectral Characteristics

    T50%=530 +/-5nm

    Tave>88% @ 560-700nm

    Tave<3% @ 420-480nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

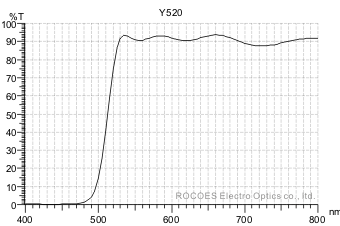

    y520,light yellow

    ITEM NO: Y520 (Light Yellow)

    Spectral Characteristics

    T50%=520 +/-5nm

    Tave>88% @ 560-700nm

    Tave<3% @ 420-480nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

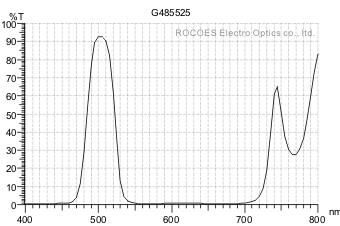

    g485/525,Dark Green

    ITEM NO: G485/525 (Dark Green)

    Spectral Characteristics

    T50%=485/525 +/- 5nm

    Tave>88% @ 500-510nm

    Tave<5% @ 580-680nm

    Tave<3% @ 400-450nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

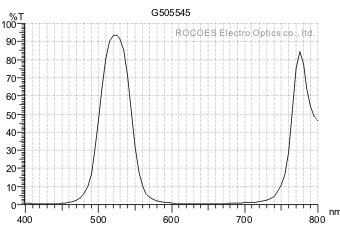

    g505/545,Green

    ITEM NO: G505/545 (Green)

    Spectral Characteristics

    T50%=505/545 +/- 5nm

    Tave>88% @ 510-535nm

    Tave<5% @ 600-680nm

    Tave<3% @ 400-450nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

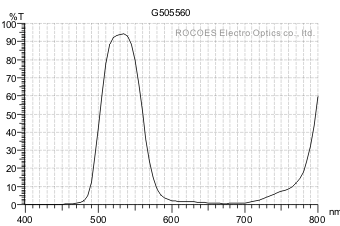

    g505/560,emerald

    ITEM NO: G505/560 (Emerald)

    Spectral Characteristics

    T50%=505/545 +/- 5nm

    Tave>88% @ 525-545nm

    Tave<5% @ 620-680nm

    Tave<3% @ 400-450nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

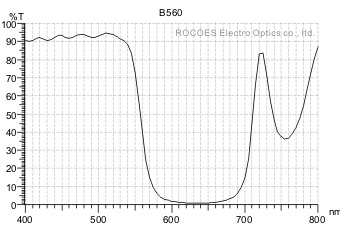

    b560,Cyan

    ITEM NO: B560 (Cyan)

    Spectral Characteristics

    T50%=560 +/- 5nm

    Tave>88% @ 420-520nm

    Tave<3% @ 600-700nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

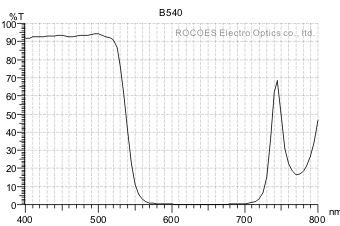

    b540,Light Blue

    ITEM NO: B540 (Light Blue)

    Spectral Characteristics

    T50%=540 +/- 5nm

    Tave>88% @ 420-500nm

    Tave<3% @ 580-680nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

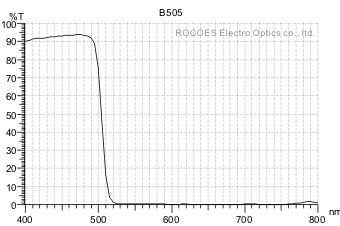

    b505,Blue

    ITEM NO: B505 (Blue)

    Spectral Characteristics

    T50%=505 +/- 5nm

    Tave>88% @ 420-480nm

    Tave<3% @ 540-700nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

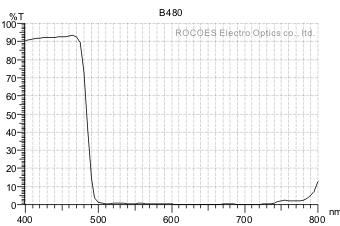

    b480,Dark Blue

    ITEM NO: B480 (Dark Blue)

    Spectral Characteristics

    T50%=480 +/- 5nm

    Tave>88% @ 400-460nm

    Tave<3% @ 520-700nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

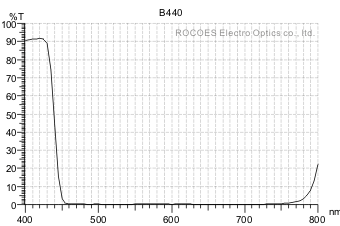

    b440,UV Blue

    ITEM NO: B440 (UV Blue)

    Spectral Characteristics

    T50%=440 +/- 5nm

    Tave>85% @ 400-420nm

    Tave<3% @ 480-700nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

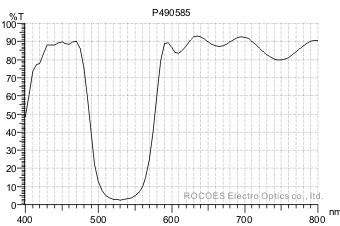

    p490/585,Pink

    ITEM NO: P490/585 (Pink)

    Spectral Characteristics

    T50%=495/585 +/- 5nm

    Tave>80% @ 610-700nm

    Tave>80% @ 420-460nm

    Tave<10% @ 520-550nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

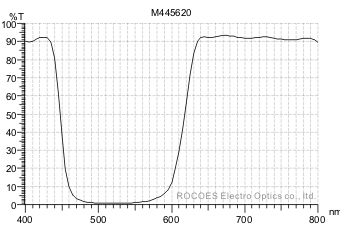

    m445/620,Magenta

    ITEM NO: M445/620 (Magenta)

    Spectral Characteristics

    T50%=445/620 +/- 5nm

    Tave>75% @ 410-420nm

    Tave<3% @ 500-540nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

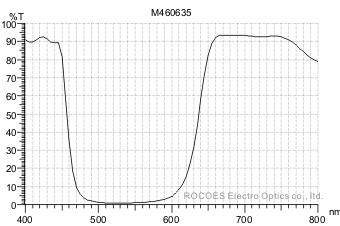

    m460/635,Magenta

    ITEM NO: M460/635 (Magenta)

    Spectral Characteristics

    T50%=460/635 +/- 5nm

    Tave>85% @ 410-440nm

    Tave>85% @ 670-700nm

    Tave<3% @ 520-560nm

    Physical Characteristics

    Glass: 1.1mm

    Tempered glass: 2, 3, 4, 5mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature

    Glass:150℃

    Tempered glass:250℃

    Borosilicate:450℃

    Information and Notes

    1. Dichroic filters are vacuum-deposited with a multilayer dielectric film. The number of coating layers is about 24~48 layers.

    2. Other colors can be designed and manufactured according to customer's requirements, which can be specified by Lee Filter or ROSCO color card number.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    4. The transmittance curves are measurements at 0°of incidence angle. The penetration color will vary slightly depending on the angle of incidence.

    5. Tempered glass has minimum size and shape restrictions. Please refer to Introduction to Tempered glass for other details.

    6. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.

    7. Round size "Dia" is an abbreviation for diameter, which represents the diameter of a circle.

    8. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
