  • HOME > Glass&Process >
    Alkali-free glass

    No-Alkali Glass

    Alkali-free glass

    Also known as No-Alkali Glass

    Functions:Alkali-free glass

    Applications: Optical/Image cover.



    0.4  ▽0.5  ▽0.7
    Information and Notes
    irico 0.4mm

    ITEM NO:IRICO0.4

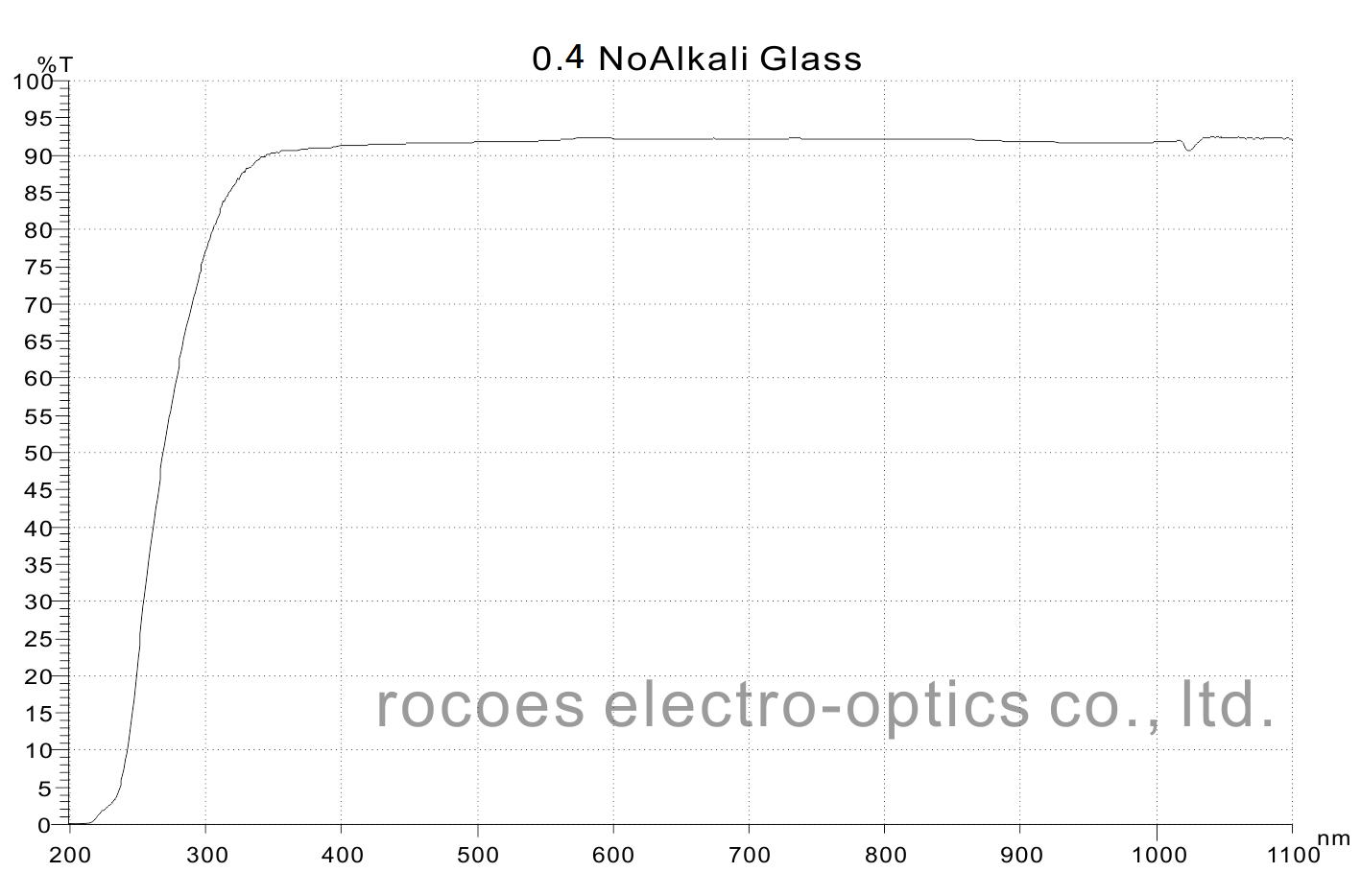

    Spectral Characteristics

    Tave>92% @ 400-1100nm

    Physical Characteristics

    Thickness: 0.4mm

    Square: 3x3 - 550x650mm

    Round: Dia3 - 300mm

    Resistant Temperature

    450℃

      irico 0.5mm

    ITEM NO:IRICO0.5

    Spectral Characteristics

    Tave>92% @ 400-1100nm

    Physical Characteristics

    Thickness: 0.5mm

    Square: 3x3 - 550x650mm

    Round: Dia3 - 300mm

    Resistant Temperature

    450℃

      irico 0.7mm

    ITEM NO:IRICO0.7

    Spectral Characteristics

    Tave>92% @ 400-1100nm

    Physical Characteristics

    Thickness: 0.7mm

    Square: 3x3 - 550x650mm

    Round: Dia3 - 300mm

    Resistant Temperature

    450℃


    Information and Notes

    1. Alkali-free glass has a slightly higher transmittance than ordinary glass, and has a lower coefficient of expansion than ordinary glass, and can withstand high temperatures without breaking.

    2. Special shapes or thicknesses can be cut or machined according to customer requirements.

    3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.

    4. Need higher penetration? Please refer to anti-reflection processing.

    5. Alkali-free glass cannot be chemically strengthened.

    6. The website specifications are for reference only, and shipments are subjected to the specifications confirmed by both parties.
