    RGB bandpass filters

    rgb bandpass filter,rocoes

    RGB bandpass filters

    Also known as Dichroic filters

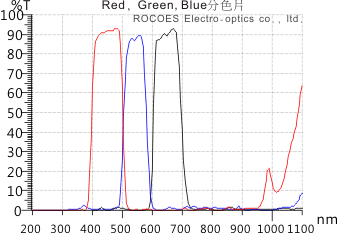

    Functions: The RGB (red, blue, and green) color separation filter separates full-wavelength light in images, white light, or daylight into separate red, blue, and green lights.

    Applications: AOI, Optical/Image equipments.

    R6070  ▽G500/600  ▽B4050
    Information and Notes
    R6070,red bandpass,rocoes

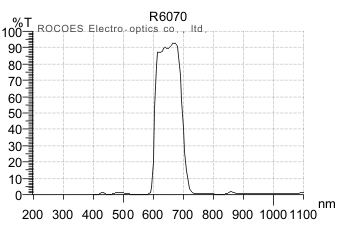

    ITEM NO: R6070 (Red)

    Spectral Characteristics

    Tave<5% 420-550nm

    Tave>75% @ 630-660nm

    Tave<5% @ 750-1100nm

    Physical Characteristics

    Glass: 1.1mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass:150℃

    Borosilicate:450℃

      g500/560,green bandpass,rocoes

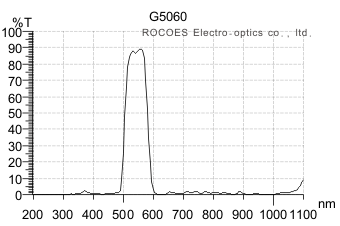

    ITEM NO: G500/560 (Green)

    Spectral Characteristics

    T50%=505/545 +/- 5nm

    Tave>88% @ 525-545nm

    Tave<5% @ 620-680nm

    Tave<3% @ 400-450nm

    Physical Characteristics

    Glass: 1.1mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass:150℃

    Borosilicate:450℃

      b4050,blue bandpass,rocoes

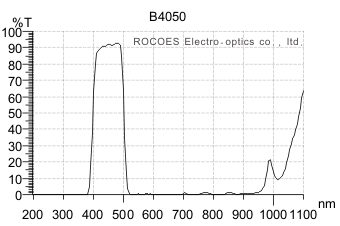

    ITEM NO: BP4050 (Blue)

    Spectral Characteristics

    Tave>85%= 430-470nm

    Tave<1% @ 500-900nm

    Tave<1% @ 200-370nm

    Physical Characteristics

    Glass: 1.1mm

    Borosilicate: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass:150℃

    Borosilicate:450℃


    Information and Notes

    1. The RGB bandpass filter is vacuum vapor-deposited with a multilayer dielectric film. The number of coating layers is about 24 to 48 layers, which can be changed according to customer needs.

    2. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    3. The above spectral curve is measured by the incident angle 0, and the non-penetrating area is reflected by the coating layer to achieve the barrier effect.

    4. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.

    5. The website specifications are for reference only, and shipments are subjected to the specifications confirmed by both parties.

    6. Browse below for more information and products,

       *Reference Coating Filters - Splitting Color Separations
       *Refer to other narrow-wave filters - other single-band penetrations
