    Red Reflector

    Red Reflector,rocoes

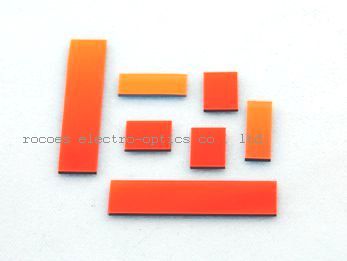

    Red reflector

    Also known as Borcode mirrors

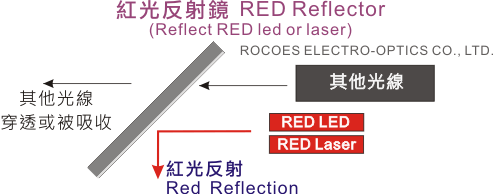

    Functions: Red Reflector has a low absorption rate of less than 1% in the red laser range, and has a relatively high reflectivity, which makes infrared lasers low loss and high reflection.

    Applications: Laser applications such as barcode scanners and lasers. Levels, laser lines, laser rangefinders, etc.

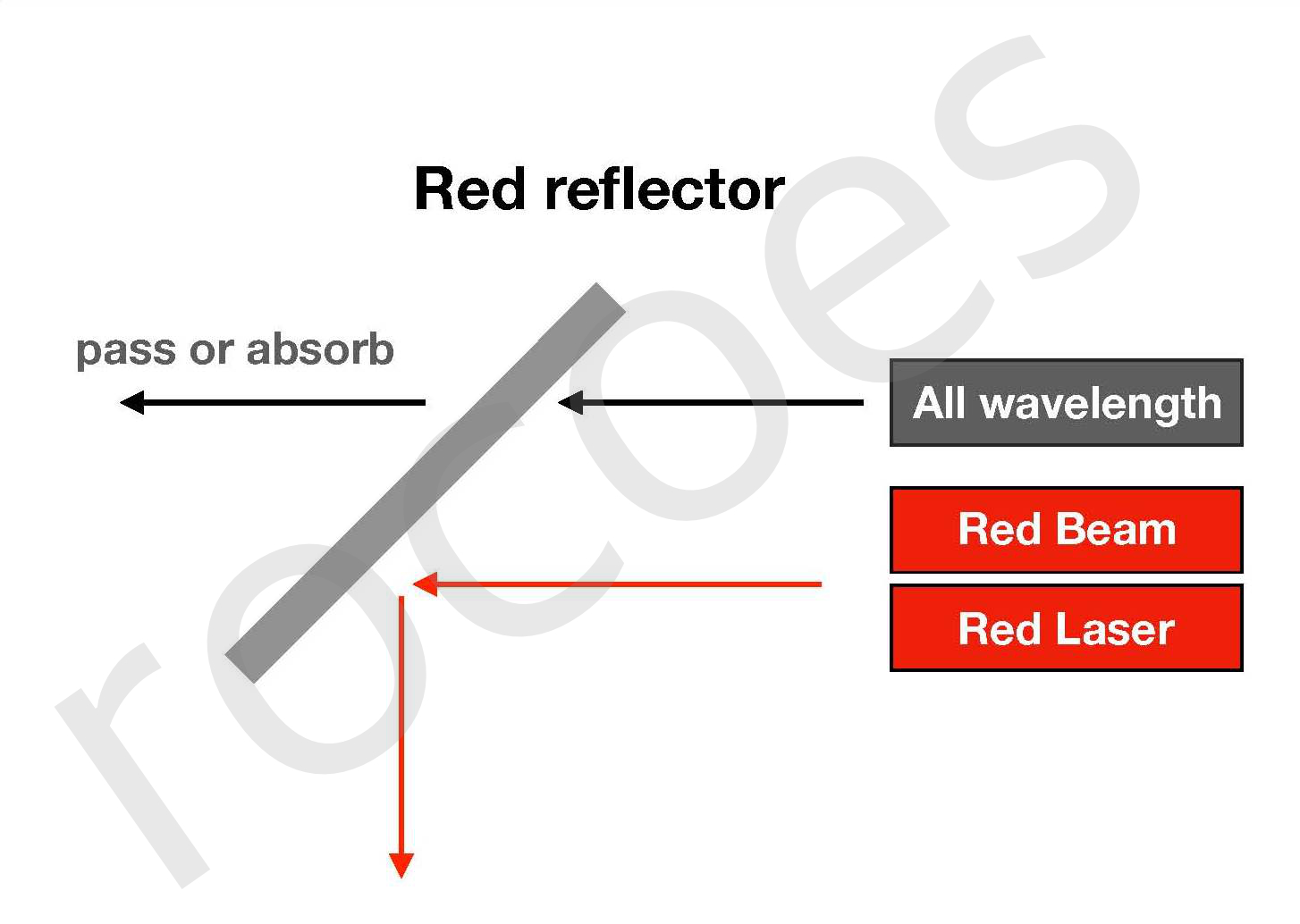

    Red Reflector,rocoes

    ITEM NO: RR6070

    Spectral Characteristics

    Rave>98% @ 620-680nm

    Physical Characteristics

    Glass: 0.4, 0.55, 0.7, 1.1mm

    Square: 8x8 - 160x160mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass:150℃


    Information and Notes

    1. The best use range for Red Reflector is 5 to 45 degrees (the angle between the incident light and the reflection sheet). Other special angles can be ordered.

    2. The red light reflection sheet is vacuum-deposited with a multilayer dielectric film, and the coating layer is used to achieve highly reflective Functions.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    4. The website specifications are for reference only, and shipments are subjected to the specifications confirmed by both parties.

    5. Browse below for more information and products,

       *Reference Green pass-Red reflector-green laser penetration, red laser reflection
       *Recommended red light penetration film - high penetration of red and infrared light
       *Refer to narrow-wave filters - qualify only certain bands such as the red laser band to pass through
       *Refer to Mirrors-Reflex Full Band
