  • HOME > Laser/Infrared/AOI >

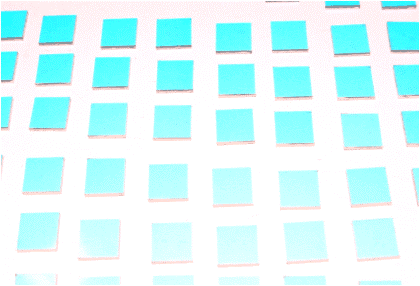

    Infrared Reflector

    infrared reflection

    Infrared Reflector/IR reflection filters

    Also know as Cold Mirrors.

    Functions: Infrared Reflector is a vacuum-deposit multi-layer coating to achieve high infrared reflection, which can penetrate visible light and have high reflectivity in the infrared range.

    Applications: Laser/Infrared/Image equipments, AOI.

      ircut, rocoes

    ITEM NO: IRCUT650

    Spectral Characteristics

    Rave>97% @ 720-1080nm

    Physical Characteristics

    Glass: 1.1, 2, 3mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass:150℃

      hot mirror,rocoes

    ITEM NO: IRCUT710

    Spectral Characteristics

    Rave>97% @ 780-1100nm

    Physical Characteristics

    Glass: 1.1, 2, 3mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass:150℃


    Information and Notes

    1. Infrared Reflector is a multi-layer dielectric film vacuum evaporation, the coating layer is about 42 layers, can be designed and produced according to customer needs.

    2. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation)。

    3. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.

    4. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.

    5. Browse below for more information and products,

       *Red reflector
       *Bandpass filters
       *Mirrors
    infrared reflection,rocoes ir reflection filter,rocoes reflect infrared,rocoes
