    Beamsplitters

    Beamsplitters,rocoes

    Beamsplitter

    Beam Splitter filters

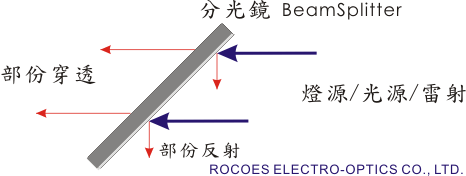

    Functions: Split the transmittance and reflectance ratio of light.

    Applications: Laser Systems, Optical Equipments, Automatic Optical Inspection Equipment(AOI)



    BS5050   ▽BS5050AR   ▽BS7030
    BS3070   ▽BS-UVA80   ▽BS-UVA50
    Information and Notes
    50/50Beamsplitters, BeamSplitter,rocoes

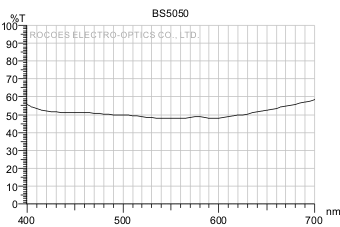

    ITEM NO: BS5050 (Beamsplitters 50T/50R)

    Spectral Characteristics

    Tave=50 +/-5% @ 420-700nm aoi=45°

    Physical Characteristics

    Glass: 1.1, 3.0mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass: 150℃

      50/50Beamsplitters, BeamSplitter,rocoes

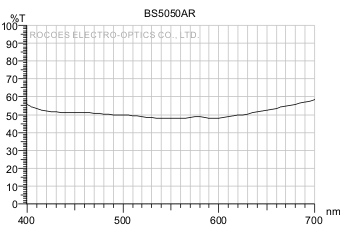

    ITEM NO: BS5050AR (Beamsplitters 50T/50R, with AR Coating)

    Spectral Characteristics

    Tave=50 +/-5% @ 420-700nm aoi=45°

    Side2: AR Coating @ 420-680nm

    Physical Characteristics

    Glass: 1.1, 3.0mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass: 150℃

      70/30Beamsplitters, BeamSplitter, 岳華展

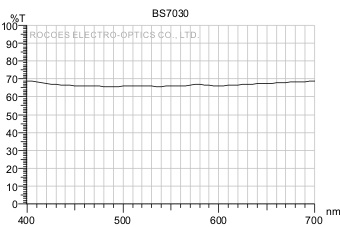

    ITEM NO: BS7030 (Beamsplitters 70T/30R)

    Spectral Characteristics

    Tave=70 +/-5% @ 420-700nm aoi=45°

    Physical Characteristics

    Glass: 1.1, 3.0mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass: 150℃

      UV Beamsplitters 80T/20R

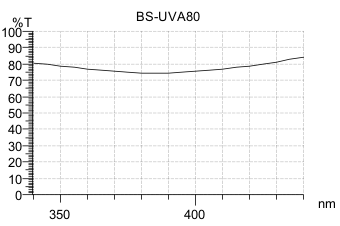

    ITEM NO: BS-UVA80 (UV Beamsplitters 80T/20R)

    Spectral Characteristics

    Tave=80 +/-5% @ 340-380nm aoi=45°

    Physical Characteristics

    B270: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    B270:150℃

      UV Beamsplitters 50T/50R

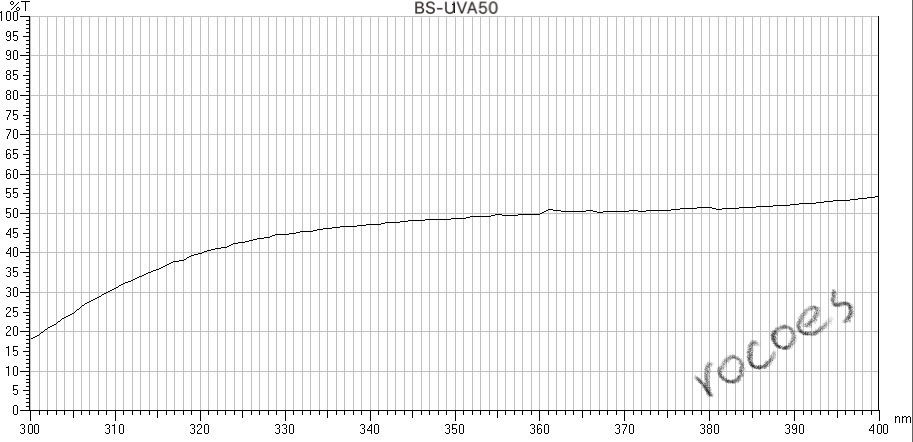

    ITEM NO: BS-UVA50 (UV Beamsplitters 50T/50R)

    Spectral Characteristics

    Tave=50 +/-5% @ 340-380nm aoi=45°

    Physical Characteristics

    B270: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    B270:150℃


    Information and Notes

    1. BeamSplitters side1 with 10~18 thin film layers which vacuum-deposited on substrate.

    2. Option: Side2 with multi-layer Anti-reflection coating to reduce reflection from 4% to 0.5% for less reflect of image or light.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation)。

    4. The transmittance curves are measurements at 45°of incidence angle.

    5. The transmittance curves are based on actual measurements and may be different with manufacturing lots.

    6. Browse below for more information and products,

       *Click here to see PRISM
