    Mirrors

    Mirrors al-mirror Mirrors 岳華展, rocoes

    Mirrors

    Aluminum Mirrors/ AL Mirror, Front Mirror, Hight-refl Mirrors.

    Mirrors can reflect light or image, but the reflectivity is different. The average mirror is the lowest, Aluminum Mirrors have good performance, and high Mirrors can have near total reflection. Gold-plated Mirrors have good reflectivity in the infrared.

    Applications: Laser, AOI, Image equipments, Optical equipments.

    ALMIRO     ▽AUMIRO
    HRMIRO    ▽Information and Notes
    al mirror,rocoes

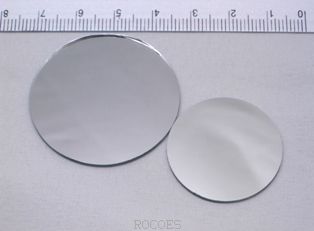

    ITEM NO: ALMIRO (Aluminum Mirrors)

    Spectral Characteristics

    Rave>94% @ 430-670nm

    Aluminized surface with transparent protective film.

    Physical Characteristics

    Glass: 1.1, 1.25, 2.0, 3.0mm

    Square: 8x8 - 500x500mm

    Round: Dia8 - 450mm

    Resistant Temperature

    Glass: 150℃

    au Mirrors,rocoes

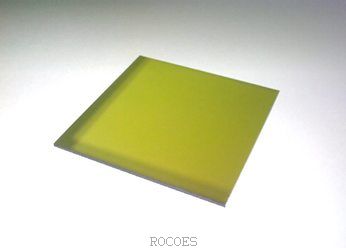

    ITEM NO: AUMIRO

    Spectral Characteristics

    Rave>99% @ 800-2000nm aoi=45°

    Physical Characteristics

    Glass: 1.1, 3.0mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass: 150℃

    high reflect Mirrors,rocoes

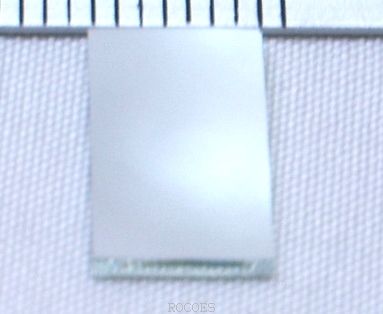

    ITEM NO: HRMIRO

    Spectral Characteristics

    Rave>98% @ 420-680nm aoi=45°

    Physical Characteristics

    Glass: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    Resistant Temperature

    Glass: 150℃


    Information and Notes

    1. Aluminized or gold-plated reflections provide a foundry service that can be supplied by the customer.

    2. The aluminized reflector is made of aluminum (AL) plus a multilayer dielectric film for vacuum evaporation. Design and production can be changed according to customer needs.

    3. The gold-plated reflector is made of gold (AU) plus a multilayer dielectric film for vacuum evaporation. Design and production can be changed according to customer needs.

    4. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    5. The above spectral curve is measured by the incident angle 0.

    6. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.

    7. Tempered Glass has limitations on minimum thickness, size and shape.

    8. Round size "Dia" is an abbreviation for diameter, which represents the diameter of a circle.

    9. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.

    10. Browse below for more information and products,

       *Dichroic Mirrors
