    Dichroic Mirrors

    Dichroic Mirrors

    Dichroic Mirrors

    Dichroic Mirrors

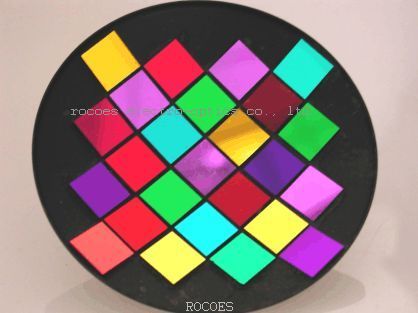

    Dichroic mirror is made of vacuum-deposit multilayer film, which has high penetration, bright color, high temperature resistance and no fading. It can reflect various colors and be used in stage lights and effect lights.

    Applications: Lighting, Stage Lighting, Entertainment Lighting.

    Dichroic Mirrors,rocoes


    Spectral Characteristics

    Red, Orange, Yellow, Blue, Green, Pink, Magenta.

    Physical Characteristics

    Glass: 1.1mm

    Square: 8x8 - 220x220mm

    Round: Dia8 - 210mm

    *Tempered glass has a minimum size limit.

    Resistant Temperature


    Information and Notes

    1. The reflection color of Dichroic Mirrors varies slightly depending on the angle of reflection. It is divided into small angles (the angle between the incident light and the reflection sheet is about 5 to 45 degrees) and the large angle (the angle between the incident light and the reflection sheet is about 45 to 70 degrees).

    2. Dichroic Mirrors are vacuum-deposited with a multilayer dielectric film. The number of coating layers is about 18~32 layers.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation)。

    4. The website specifications are for reference only, and the shipments are subjected to the specifications confirmed by both parties.

    5. Browse below for more information and products,
