    Fiber lighting color wheel

    Fiber Lighting

    Fiber lighting color wheel Fiber Lighting Wheel

    Dichroic for Fiber Lighting

    The optical fiber light dichroic filter is formed by vacuum multi-layer film evaporation, and is formed by high-vacuum multilayer film evaporation. It has high penetration, bright color, high temperature resistance and no fading. It is assembled into a color disk and installed in the fiber optic lamp. The motor drives the rotation, which allows the fiber to change in various colors, and also allows the fiber to flicker or flow.

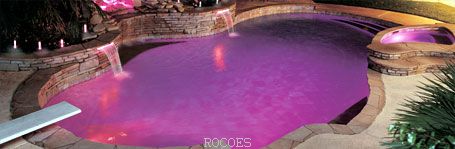

    Applications: Fiber lighting, lighting, sign lighting.

    ITEM NO: S90-4

    Diameter: 90mm

    Inner hole: 10mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

    ITEM NO: D90-4

    Diameter: 90mm

    Inner hole: 10mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

    ITEM NO: D95-4

    Diameter: 95mm

    Inner hole: 10mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

    ITEM NO: D95-5

    Diameter: 95mm

    Inner hole: 10mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

    ITEM NO: D95-6

    Diameter: 95mm

    Inner hole: 10mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.

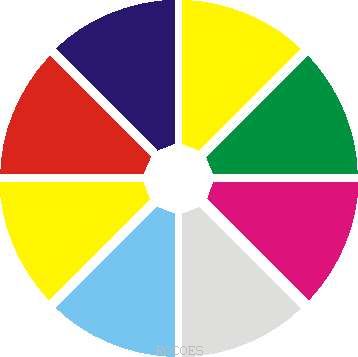

    ITEM NO: D124-8

    Diameter: 124mm

    Inner hole: 25mm

    Physical Characteristics

    Glass: 1.1mm

    Resistant Temperature

    Glass:150℃

    Option color:

    Red, Orange, Yellow, Blue, Green, Pink, Magenta, Cyan, Yellow-green.


    Information and Notes

    1. Fiber lighting color wheel provides customized service, can be customized non-standard color / conversion color temperature / control lightness / outer diameter / inner hole diameter / use heat-resistant glass.

    2. The fiber-optic lamp color film is vacuum-deposited with a multi-layer dielectric film. The number of coating layers is about 21~42 layers. It can be designed and produced according to customers' requirements.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation)。

    4. The website specifications are for reference only, and the shipments are subjected to the specifications confirmed by both parties.

    5. Browse below for more information and products,
