High reflectance filters

High reflectance filters

Also known as High reflection mirrors.

Functions: High reflectance filters are suitable for devices that use green or red lasers. Due to their high reflection and low absorption, laser light can lose less than 1% of energy when reflected.

Applications: Green/Blue/Red Led or Laser.

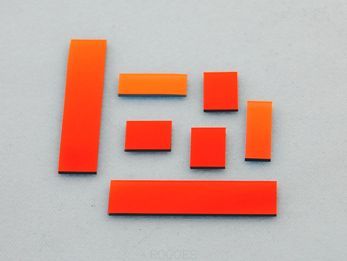

ITEM NO: REDHR

Spectral Characteristics

Rave>98% @ 600-680nm @ 45°

Physical Characteristics

Glass: 0.4, 0.55, 0.7, 1.1mm

Square: 8x8 - 160x160mm

Round: Dia8 - 150mm

Resistant Temperature

Glass: 150℃

ITEM NO: GREENHR

Spectral Characteristics

Rave>98% @ 500-580nm @ 45°

Physical Characteristics

Glass: 0.4, 0.55, 0.7, 1.1mm

Square: 8x8 - 160x160mm

Round: Dia8 - 150mm

Resistant Temperature

Glass: 150℃

Information and Notes

1. High reflectance filters are based on the angle between the incident light and the reflector. They are available in 0~5, or 40~50 degrees. Other special angles can be ordered.

2. High reflectance filters are vacuum-deposited with a multilayer dielectric film to achieve highly reflective Functions by coating layers.

3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

4. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
