Green pass-Red reflector
Green pass-Red reflector

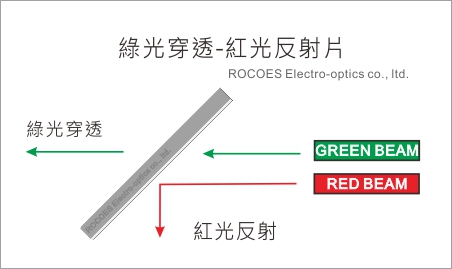

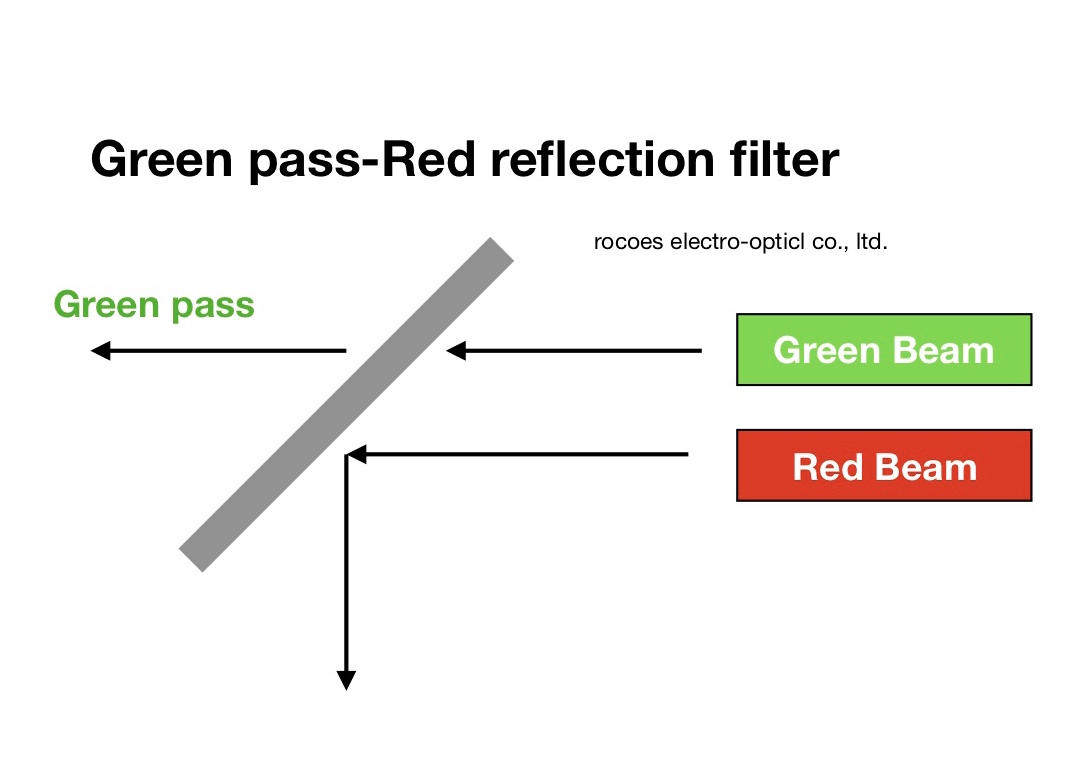

Green pass-red reflecttion filter.
Functions: Allows the red laser to be highly reflective while the green laser is highly transmittance.
Applications: Laser/LED equipments, AOI.

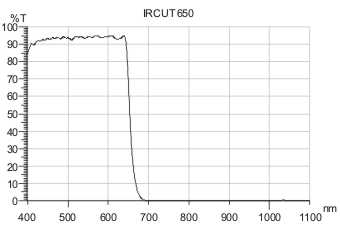

ITEM NO: IRCUT650
Spectral Characteristics
Rave>97% @ 720-1080nm
Physical Characteristics
Glass: 1.1, 2, 3mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
Resistant Temperature
Glass:150℃

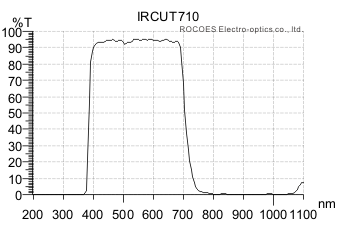

ITEM NO: IRCUT710
Spectral Characteristics
Rave>97% @ 780-1100nm
Physical Characteristics
Glass: 1.1, 2, 3mm
Square: 8x8 - 220x220mm
Round: Dia8 - 210mm
Resistant Temperature
Glass:150℃
Information and Notes
1. Gree pass-Red reflectio filter is vacuum-deposited with a multilayer dielectric film. The number of coating layers is about 38 layers.
2. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).
3. The transmittance curves are measurements at 0°of incidence angle. The penetration color will vary slightly depending on the angle of incidence.
4. The spectral curve is the measured value of the sample and may vary slightly from manufacturing lot to batch, but conforms to the spectral definition.
5. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
