    Blue Reflector

    blue Reflector,rocoes

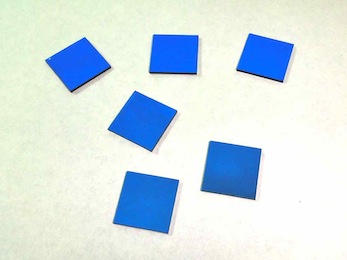

    Blue Reflector

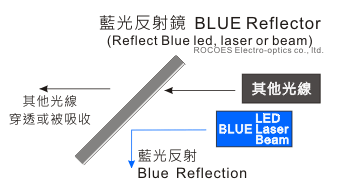

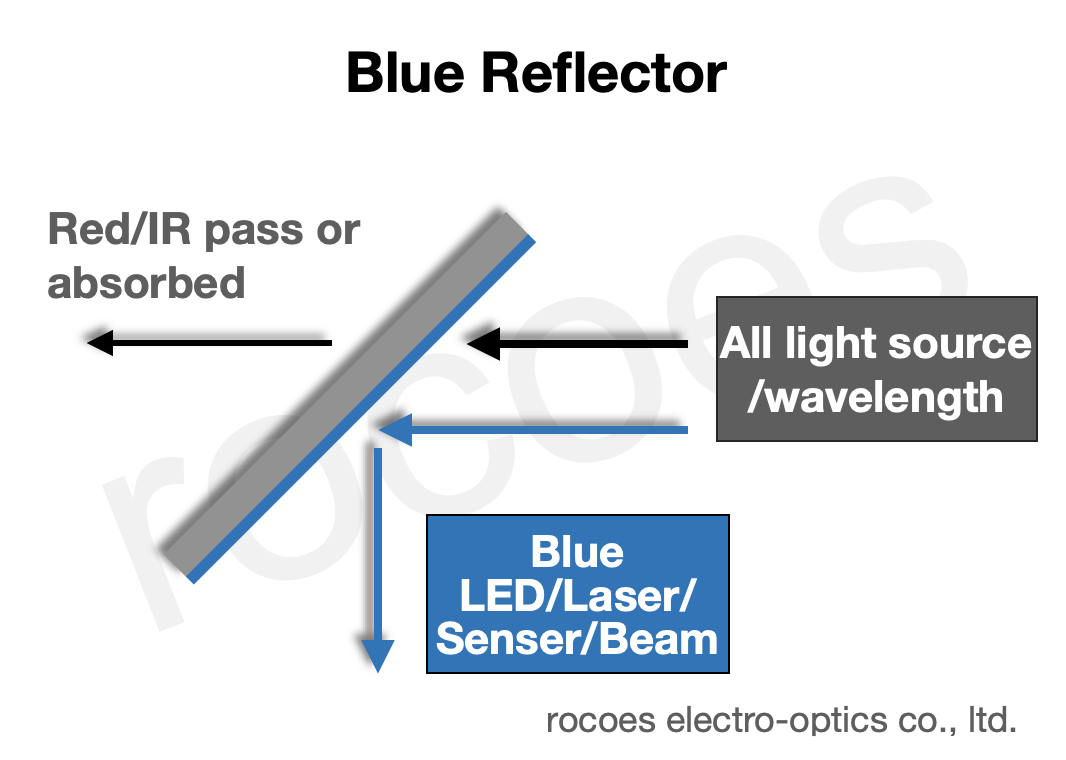

    Functions: In the blue laser range, there is a fairly high reflectivity, and below 1% absorption, it can reflect blue light.



    Applications: Blu-ray LED applications, Blu-ray laser applications.

     Blue Reflector, rocoes

    ITEM NO: RB4550

    Spectral Characteristics

    Rave>98% @ 620-680nm

    Physical Characteristics

    Glass: 0.4, 0.55, 0.7, 1.1mm

    Square: 8x8 - 160x160mm

    Round: Dia8 - 150mm

    Resistant Temperature

    Glass:150℃


    Information and Notes

    1. Blue Reflector is best used in the range of 5 to 45 degrees (the angle between the incident light and the reflector). Other special angles can be ordered.

    2. The blue light reflection sheet is vacuum-deposited with a multilayer dielectric film, and the coating layer is used to achieve highly reflective Functions.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    4. The website specifications are for reference only, and shipments are subjected to the specifications confirmed by both parties.

    5. Browse below for more information and products,

       *Green pass-Red reflector.
       *Red Reflector
       *Red/Infrared pass filters
       *Bandpass filters
       *Mirrors
